Series 93 Sets  /  93HSS

93HSS

Part Number: 93HSS
$293.26
Total Price: $293.26 (293.26/ea)
QTY:


Stock may be limited. Please call Brixon to confirm availability for all expedited order needs. A formal acknowledgement will be emailed to confirm lead time on all orders.

PRODUCT DETAILS

93BHSS:

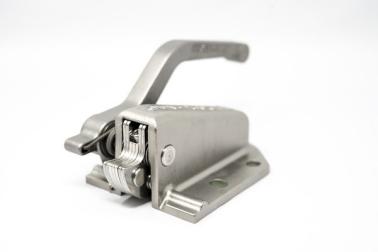

93 Stainless Steel Body & Right Side Handle, Standard Finish

CAD DRAWING



FEATURES

  • Corrosion resistant stainless steel internals.
  • Adjustable release force 43-180 lbs.
  • Corrosion resistant stainless steel investment casting.
  • Integrated handle on right side for easy opening.

SPECS

  • Casting Material 316 Stainless Steel
  • Finish Raw Cast
  • Internal Materials Stainless Steel
  • Length (in) 5.16
  • Width (in) 3.86
  • Height (in) 3.5
  • Length (cm) 13.1
  • Width (cm) 9.8
  • Height (cm) 8.89
  • Handle Yes
  • Mounting Hole Clearance 3/8" Grade 8 Bolt
  • C1 Distance To Face Of Component (in) 1.85
  • C2 Distance To Face Of Component (in) 3.625
  • Mounting Hole Center To Center (cm) 7.29
  • C1 Distance To Face Of Component (cm) 4.7
  • C2 Distance To Face Of Component (cm) 9.21
  • Mounting Hole Center To Center (in) 2.87

943STSS:

943 Stainless Steel Strike, Standard Finish

CAD DRAWING



FEATURES

  • Corrosion resistant stainless steel internals.
  • Corrosion resistant stainless steel investment casting.

SPECS

  • Casting Material 316 Stainless Steel
  • Finish Raw Cast
  • Internal Materials Stainless Steel
  • Length (in) 1.65
  • Width (in) 3.86
  • Height (in) 2.05
  • Length (cm) 4.2
  • Width (cm) 9.8
  • Height (cm) 5.2
