• 83BLH3CSC
  • 843TSSSCSC

83LHTS4CSC

Part Number: 83LHTS4CSC
$334.96
Total Price: $334.96 (334.96/ea)
QTY:


Stock may be limited. Please call Brixon to confirm availability for all expedited order needs. A formal acknowledgement will be emailed to confirm lead time on all orders.

PRODUCT DETAILS

83BLH3CSC:

83 Cast Steel Body & Left Side Handle, Chrome Finish & Stainless Steel Internals

CAD DRAWING



FEATURES

  • Corrosion resistant stainless steel internals.
  • Easy to clean polished chrome finish.
  • Adjustable release force 43-180 lbs.
  • Integrated handle on left side for easy opening.

SPECS

  • Casting Material 1020 Carbon Steel
  • Finish Polished Chrome
  • Internal Materials Stainless Steel
  • Length (in) 5.16
  • Width (in) 3.86
  • Height (in) 3.5
  • Length (cm) 13.1
  • Width (cm) 9.8
  • Height (cm) 8.89
  • Handle Yes
  • Mounting Hole Clearance 3/8" Grade 8 Bolt
  • C1 Distance To Face Of Component (in) 1.85
  • C2 Distance To Face Of Component (in) 3.625
  • Mounting Hole Center To Center (cm) 7.29
  • C1 Distance To Face Of Component (cm) 4.7
  • C2 Distance To Face Of Component (cm) 9.21
  • Mounting Hole Center To Center (in) 2.87

843TSSSCSC:

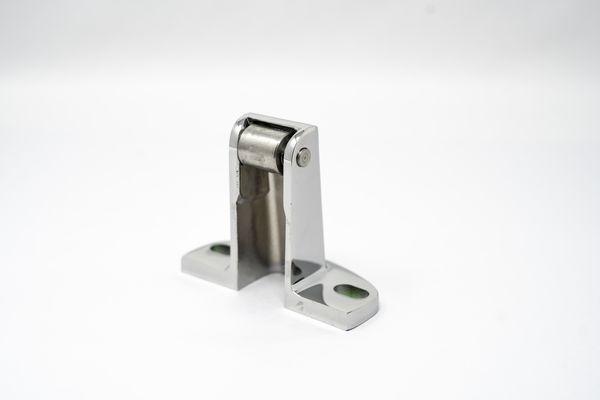

843 Cast Steel Tall Strike, Chrome Finish & Stainless Steel Internals

CAD DRAWING



FEATURES

  • Corrosion resistant stainless steel internals.
  • Easy to Easy to clean polished chrome finish.

SPECS

  • Casting Material 1020 Carbon Steel
  • Finish Polished Chrome
  • Internal Materials Stainless Steel
  • Length (in) 1.65
  • Width (in) 3.86
  • Height (in) 3.1875
  • Length (cm) 4.2
  • Width (cm) 9.8
  • Height (cm) 8.1
TECHNICAL DOCS
