4PASCIC

Part Number: 4PASCIC
$315.15
Total Price: $315.15 (315.15/ea)
QTY:


Stock may be limited. Please call Brixon to confirm availability for all expedited order needs. A formal acknowledgement will be emailed to confirm lead time on all orders.

PRODUCT DETAILS

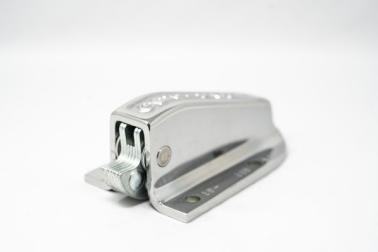

4BOCIC:

4 Cast Iron Body, Chrome Finish & Standard Internals

CAD DRAWING



FEATURES

  • Easy to clean polished chrome finish.
  • Adjustable release force 58-285 lbs.

SPECS

  • Casting Material Ductile Iron 65-45-12
  • Finish Polished Chrome
  • Internal Materials Hardened & Zinc Plated Mild Steel
  • Length (in) 6.625
  • Width (in) 3.875
  • Height (in) 2.8125
  • Length (cm) 16.83
  • Width (cm) 9.84
  • Height (cm) 7.14
  • Handle No
  • Mounting Hole Clearance 3/8" Grade 8 Bolt
  • C1 Distance To Face Of Component (in) 0.75
  • C2 Distance To Face Of Component (in) 3.75
  • Mounting Hole Center To Center (cm) 6.67
  • C1 Distance To Face Of Component (cm) 1.91
  • C2 Distance To Face Of Component (cm) 9.53
  • Mounting Hole Center To Center (in) 2.625

43ASCIC:

43 Cast Iron Adjustable Strike, Chrome Finish & Standard Internals

CAD DRAWING



FEATURES

  • Three roller positions for offset mounting.
  • Easy to clean polished chrome finish.
  • Adjustable #43 strike bottom position for door offsets of .151"-.305".
  • Adjustable #43 strike middle position for door offsets of .306"-.680".
  • Adjustable #43 strike top position for door offsets of .839"-1.05".

SPECS

  • Casting Material Ductile Iron 65-45-12
  • Finish Polished Chrome
  • Internal Materials Hardened & Zinc Plated Mild Steel
  • Length (in) 1.5625
  • Width (in) 3.875
  • Height (in) 3.1875
  • Length (cm) 3.97
  • Width (cm) 9.84
  • Height (cm) 8.1
