Series 3 Iron Sets  /  3PTSCIC

3PTSCIC

Part Number: 3PTSCIC
$252.48
Total Price: $252.48 (252.48/ea)
QTY:


Stock may be limited. Please call Brixon to confirm availability for all expedited order needs. A formal acknowledgement will be emailed to confirm lead time on all orders.

PRODUCT DETAILS

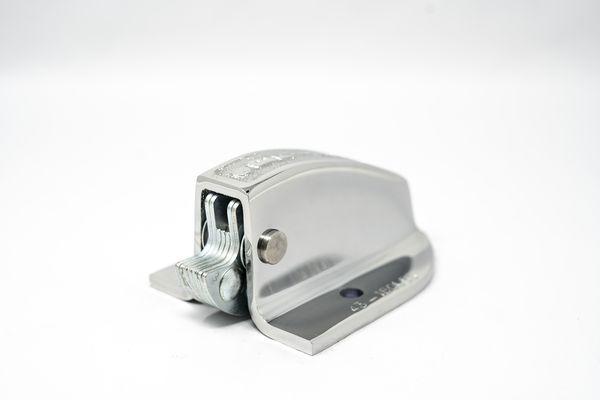

3BOCIC:

3 Cast Iron Body, Chrome Finish & Standard Internals

CAD DRAWING



FEATURES

  • Easy to clean polished chrome finish.
  • Adjustable release force 43-180 lbs.

SPECS

  • Casting Material Grey Iron Class 30
  • Finish Polished Chrome
  • Internal Materials Hardened & Zinc Plated Mild Steel
  • Length (in) 5.125
  • Width (in) 3.875
  • Height (in) 2.6875
  • Length (cm) 13.02
  • Width (cm) 9.84
  • Height (cm) 6.83
  • Handle No
  • Mounting Hole Clearance 3/8" Grade 8 Bolt
  • C1 Distance To Face Of Component (in) 1.875
  • Mounting Hole Center To Center (cm) 6.67
  • C1 Distance To Face Of Component (cm) 4.76
  • Mounting Hole Center To Center (in) 2.625

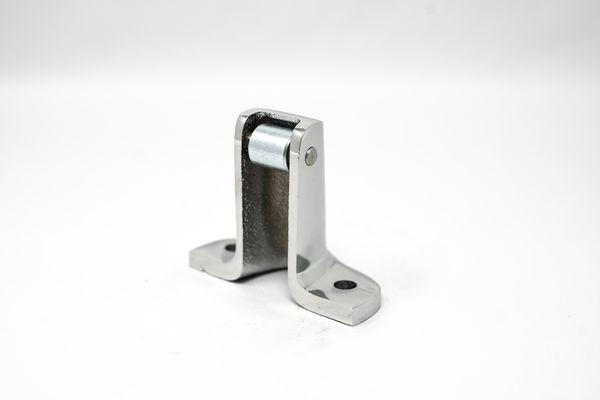

43TSCIC:

43 Cast Iron Tall Strike, Chrome Finish & Standard Internals

CAD DRAWING



FEATURES

  • Easy to clean polished chrome finish.
  • Tall #43 strike for door offsets of 1.05"-1.43".

SPECS

  • Casting Material Ductile Iron 65-45-12
  • Finish Polished Chrome
  • Internal Materials Hardened & Zinc Plated Mild Steel
  • Length (in) 1.5625
  • Width (in) 3.875
  • Height (in) 3.1875
  • Length (cm) 3.97
  • Width (cm) 9.84
  • Height (cm) 8.1
TECHNICAL DOCS
