3LHWSCIC

Part Number: 3LHWSCIC
$302.62
QTY:


Stock may be limited. Please call Brixon to confirm availability for all expedited order needs. A formal acknowledgement will be emailed to confirm lead time on all orders.

PRODUCT DETAILS

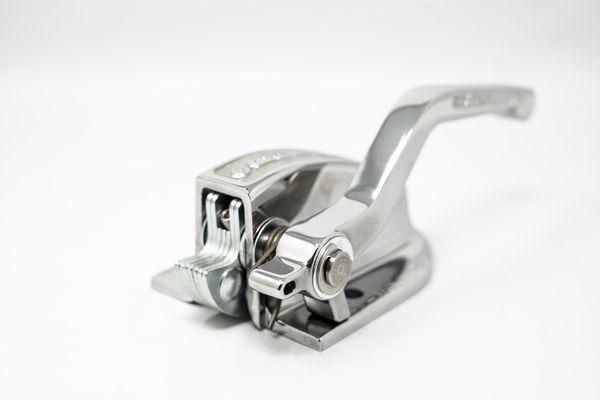

3BLHCIC:

3 Cast Iron Body & Left Side Handle, Chrome Finish & Standard Internals

CAD DRAWING



FEATURES

  • Easy to clean polished chrome finish.
  • Adjustable release force 43-180 lbs.
  • Integrated handle on left side for easy opening.

SPECS

  • Casting Material Grey Iron Class 30 & 1020 Carbon Steel
  • Finish Polished Chrome
  • Internal Materials Hardened & Zinc Plated Mild Steel
  • Length (in) 5.125
  • Width (in) 3.875
  • Height (in) 3.25
  • Length (cm) 13.02
  • Width (cm) 9.84
  • Height (cm) 8.26
  • Handle Yes
  • Mounting Hole Clearance 3/8" Grade 8 Bolt
  • C1 Distance To Face Of Component (in) 1.875
  • Mounting Hole Center To Center (cm) 6.67
  • C1 Distance To Face Of Component (cm) 4.76
  • Mounting Hole Center To Center (in) 2.625

43WSCIC:

43 Cast Iron Wd Strike, Chrome Finish & Standard Internals

CAD DRAWING



FEATURES

  • Easy to clean polished chrome finish.

SPECS

  • Casting Material Ductile Iron 65-45-12
  • Finish Polished Chrome
  • Internal Materials Hardened & Zinc Plated Mild Steel
  • Length (in) 1.5625
  • Width (in) 4.625
  • Height (in) 2.25
  • Length (cm) 3.97
  • Width (cm) 11.75
  • Height (cm) 5.72
