Series 2 Cast Iron Sets  /  2PASCIC

2PASCIC

Part Number: 2PASCIC
$153.11
Total Price: $153.11 (153.11/ea)
QTY:


Stock may be limited. Please call Brixon to confirm availability for all expedited order needs. A formal acknowledgement will be emailed to confirm lead time on all orders.

PRODUCT DETAILS

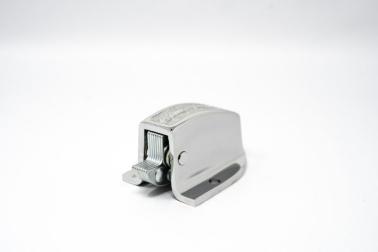

2BOCIC:

2 Cast Iron Body, Chrome Finish & Standard Internals

CAD DRAWING



FEATURES

  • Adjustable release force 10-45 lbs.
  • Easy to clean polished chrome finish.

SPECS

  • Casting Material Grey Iron Class 30
  • Finish Polished Chrome
  • Internal Materials Hardened & Zinc Plated Mild Steel
  • Length (in) 3.75
  • Width (in) 2.625
  • Height (in) 2.25
  • Length (cm) 9.53
  • Width (cm) 6.67
  • Height (cm) 5.72
  • Handle No
  • Mounting Hole Clearance 5/16" Bolt
  • C1 Distance To Face Of Component (in) 1.3125
  • Mounting Hole Center To Center (cm) 5.08
  • C1 Distance To Face Of Component (cm) 3.33
  • Mounting Hole Center To Center (in) 2

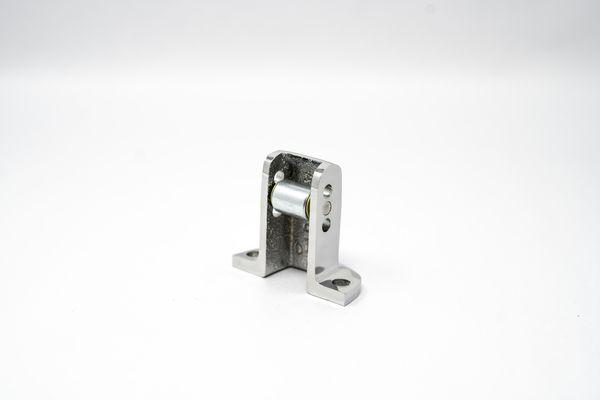

2ASCIC:

2 Cast Iron AdjustableStrike, Chrome Finish & Standard Internals

CAD DRAWING



FEATURES

  • Adjustable #2 strike for door offsets of 1/4"-9/16" & 5/8"-13/16"
  • Easy to clean polished chrome finish.
  • Three roller positions for offset mounting.

SPECS

  • Casting Material Grey Iron Class 30
  • Finish Polished Chrome
  • Internal Materials Hardened & Zinc Plated Mild Steel
  • Length (in) 1.125
  • Width (in) 2.625
  • Height (in) 2.4
  • Length (cm) 2.86
  • Width (cm) 6.67
  • Height (cm) 6.1
  • Mounting Hole Clearance 5/16" Bolt
  • C1 Distance To Face Of Component (in) 0.375
  • Mounting Hole Center To Center (cm) 5.08
  • C1 Distance To Face Of Component (cm) 0.95
  • Mounting Hole Center To Center (in) 2
TECHNICAL DOCS
