2HCI

Part Number: 2HCI
$100.11
QTY:


Stock may be limited. Please call Brixon to confirm availability for all expedited order needs. A formal acknowledgement will be emailed to confirm lead time on all orders.

PRODUCT DETAILS

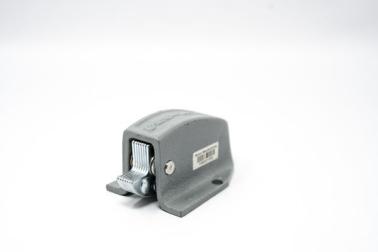

2BOCI:

2 Cast Iron Body, Standard Finish & Standard Internals

CAD DRAWING



FEATURES

  • Adjustable release force 10-45 lbs.
  • Durable gray powder coated finish.

SPECS

  • Casting Material Grey Iron Class 30
  • Finish Powder Coated
  • Internal Materials Hardened & Zinc Plated Mild Steel
  • Length (in) 3.75
  • Width (in) 2.625
  • Height (in) 2.25
  • Length (cm) 9.53
  • Width (cm) 6.67
  • Height (cm) 5.72
  • Handle No
  • Mounting Hole Clearance 5/16" Bolt
  • C1 Distance To Face Of Component (in) 1.3125
  • Mounting Hole Center To Center (cm) 5.08
  • C1 Distance To Face Of Component (cm) 3.33
  • Mounting Hole Center To Center (in) 2

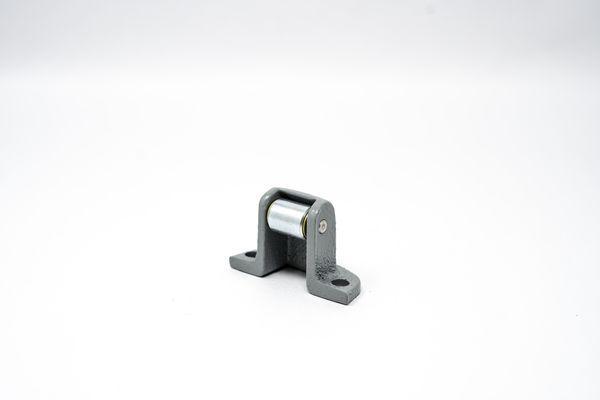

2STCI:

2 Cast Iron Strike, Standard Finish & Standard Internals

CAD DRAWING



FEATURES

  • Durable gray powder coated finish.
  • Regular #2 strike for door offsets of 0 - 3/16".

SPECS

  • Casting Material Grey Iron Class 30
  • Finish Powder Coated
  • Internal Materials Hardened & Zinc Plated Mild Steel
  • Length (in) 1.125
  • Width (in) 2.625
  • Height (in) 1.6875
  • Length (cm) 2.86
  • Width (cm) 6.67
  • Height (cm) 4.29
  • Mounting Hole Clearance 5/16" Bolt
  • C1 Distance To Face Of Component (in) 0.375
  • Mounting Hole Center To Center (cm) 5.08
  • C1 Distance To Face Of Component (cm) 0.95
  • Mounting Hole Center To Center (in) 2

2HACI:

2 Cast Iron Handle, Standard Finish

CAD DRAWING


FEATURES

  • Durable gray powder coated finish.
  • Easy pull handle.

SPECS

  • Casting Material Ductile Iron 65-45-12
  • Finish Powder Coated
  • Length (in) 1
  • Width (in) 4
  • Height (in) 3.25
  • Length (cm) 2.54
  • Width (cm) 10.16
  • Height (cm) 8.26
  • Handle Yes
  • Mounting Hole Clearance 5/16" Bolt
  • C1 Distance To Face Of Component (in) 0.3125
  • Mounting Hole Center To Center (cm) 5.08
  • C1 Distance To Face Of Component (cm) 0.79
  • Mounting Hole Center To Center (in) 2
