2HAS4AL

Part Number: 2HAS4AL
$150.87
Total Price: $150.87 (150.87/ea)
QTY:


Stock may be limited. Please call Brixon to confirm availability for all expedited order needs. A formal acknowledgement will be emailed to confirm lead time on all orders.

PRODUCT DETAILS

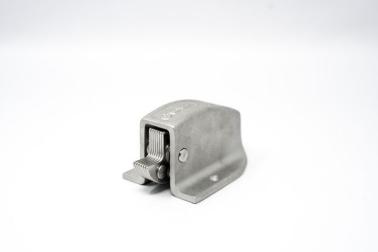

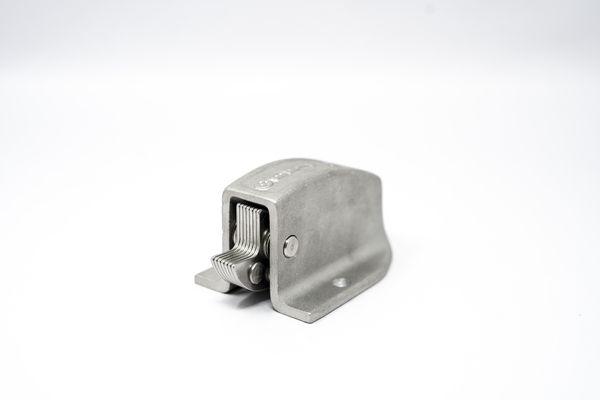

2BO3AL:

2 Aluminum Body, Standard Finish & Stainless Steel Internals

CAD DRAWING



FEATURES

  • Adjustable release force 10-45 lbs.
  • Corrosion resistant stainless steel internals.
  • Light weight aluminum casting.

SPECS

  • Casting Material Aluminum 319
  • Finish Raw Cast
  • Internal Materials Stainless Steel
  • Length (in) 3.75
  • Width (in) 2.625
  • Height (in) 2.25
  • Length (cm) 9.53
  • Width (cm) 6.67
  • Height (cm) 5.72
  • Handle No
  • Mounting Hole Clearance 5/16" Bolt
  • C1 Distance To Face Of Component (in) 1.3125
  • Mounting Hole Center To Center (cm) 5.08
  • C1 Distance To Face Of Component (cm) 3.33
  • Mounting Hole Center To Center (in) 2

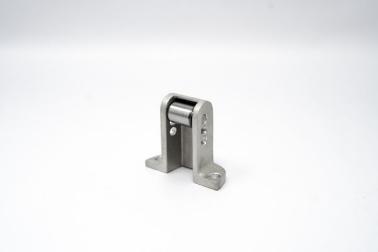

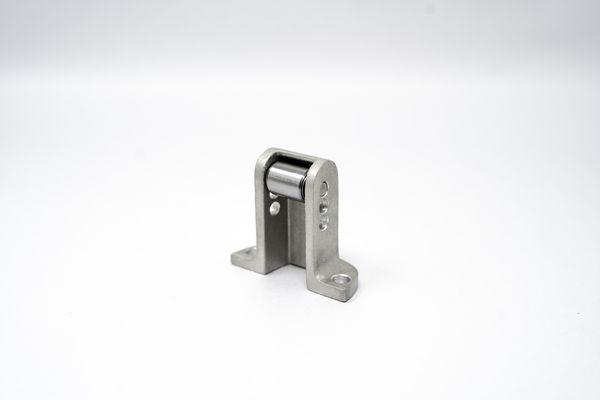

2ASSSAL:

2 Aluminum Adjustable Strike, Standard Finish & Stainless Steel Internals

CAD DRAWING



FEATURES

  • Adjustable #2 strike for door offsets of 1/4"-9/16" & 5/8"-13/16"
  • Light weight aluminum casting.
  • Three roller positions for offset mounting.

SPECS

  • Casting Material Aluminum 319
  • Finish Raw Cast
  • Internal Materials Stainless Steel
  • Length (in) 1.125
  • Width (in) 2.625
  • Height (in) 2.4
  • Length (cm) 2.86
  • Width (cm) 6.67
  • Height (cm) 6.1
  • Mounting Hole Clearance 5/16" Bolt
  • C1 Distance To Face Of Component (in) 0.375
  • Mounting Hole Center To Center (cm) 5.08
  • C1 Distance To Face Of Component (cm) 0.95
  • Mounting Hole Center To Center (in) 2

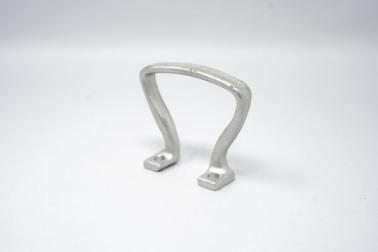

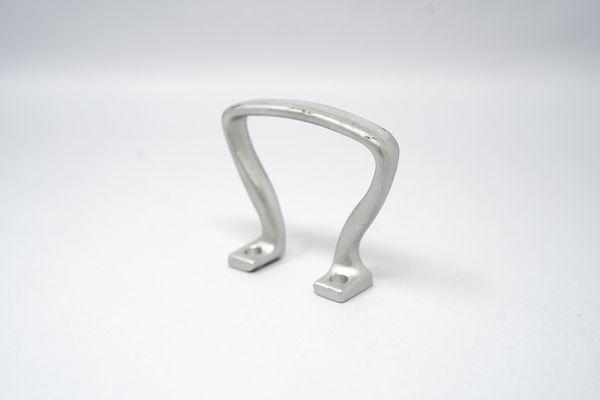

2HAAL:

2 Aluminum Handle, Standard Finish

CAD DRAWING



FEATURES

  • Easy pull handle.
  • Light weight aluminum casting.

SPECS

  • Casting Material Aluminum 713
  • Finish Raw Cast
  • Length (in) 1
  • Width (in) 4
  • Height (in) 3.25
  • Length (cm) 2.54
  • Width (cm) 10.16
  • Height (cm) 8.26
TECHNICAL DOCS
